전도도/비저항/TDS 측정기

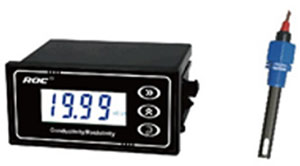

CCT-3300

Conductivity/Resitivity/TDS Online meter
(전도도/비저항/TDS 측정기)

Model	CCT-3320
Feature	Conductivity / Resistivity / TDS transmitting controller
Range	Conductivity	0.5~20㎲/cm(with 10.0 cell) 1~2000㎲/cm(with 1.0 cell) 0.5~200㎲/cm(with 0.1 cell)
	Resistivity	0.05~18.25mΩ.cm(with 0.01 cell)
	TDS	0.25ppm~20.00ppt(with 10.0 graphite cell)
	Temp.	0~50℃(NTC10k)
Resolution	Conductivity	0.01㎲/cm, 0.01㎲/cm
	Resistivity	0.01mΩ.cm
	TDS	0.01ppm
	Temp.	0.1℃
Accuracy	Conductivity	1.5%(F.S)
	Resistivity	2.0%(F.S)
	TDS	1.5%(F.S)
	Temp.	±0.5%
4~20mA	Channels	Single channel, Isolated
	Characteristics	Reversible, fully adjustable, instrument mode for select
	Loop resistance	400Ω(Max), DC24V
	Accuracy	±0.1mA
Control contacts	Channels	Single Channel
	Relay contacts	SPDT
	Load capacity	AC220V/3A(Max), AC110V/5A(Max), DC24V/3A(Max)
Power supply	AC220V ±10%
Working enviroment	Temp. : 0~50℃; Relative humidity ±85% RH
Storage enviroment	Temp. : -20~60℃; Relative humidity ±85% RH
Dimension	48mm x 96mm x 80mm(H x W x D)
Hole size	44mm x 92mm (H x W)
installation	Panel mounting type quick fixed

CCT-3320

CCT-3320 계측기는 전자산업, 제약, 화학, 식음료, 제지, 코팅, 도금, 순수제조설비 등 광범위하게 사용되는 가성비를 갖춘 소형 측정기입니다.

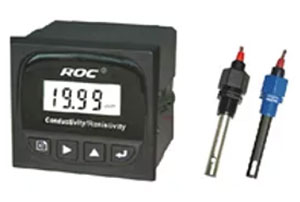

CCT-5320

Conductivity/Resitivity/TDS Online meter
(전도도/비저항/TDS 측정기)

Model	CCT-5320
Feature	Conductivity / Resistivity / TDS transmitting controller
Range	Conductivity	0.5~20㎲/cm(with 10.0 cell) 1~2000㎲/cm(with 1.0 cell) 0.5~200㎲/cm(with 0.1 cell)
	Resistivity	0.05~18.25mΩ.cm(with 0.01 cell)
	TDS	0.25ppm~20.00ppt(with 10.0 graphite cell)
	Temp.	0~50℃(NTC10k)
Resolution	Conductivity	0.01㎲/cm, 0.01㎲/cm
	Resistivity	0.01mΩ.cm
	TDS	0.01ppm
	Temp.	0.1℃
Accuracy	Conductivity	1.5%(F.S)
	Resistivity	2.0%(F.S)
	TDS	1.5%(F.S)
	Temp.	±0.5%
4~20mA	Channels	Single channel, Isolated
	Characteristics	Reversible, fully adjustable, instrument mode for select
	Loop resistance	400Ω(Max), DC24V
	Accuracy	±0.1mA
Control contacts	Channels	Single Channel
	Relay contacts	SPDT
	Load capacity	AC220V/3A(Max), AC110V/5A(Max), DC24V/3A(Max)
Power supply	AC220V ±10%
Working enviroment	Temp. : 0~50℃; Relative humidity ±85% RH
Storage enviroment	Temp. : -20~60℃; Relative humidity ±85% RH
Dimension	96mm x 96mm x 105mm(H x W x D)
Hole size	91mm x 91mm (H x W)
installation	Panel mounting type quick fixed

CCT-5320

CCT-3320 계측기는 전자산업, 제약, 화학, 식음료, 제지, 코팅, 도금, 순수제조설비 등 광범위하게 사용되는 가성비를 갖춘 소형 측정기입니다.

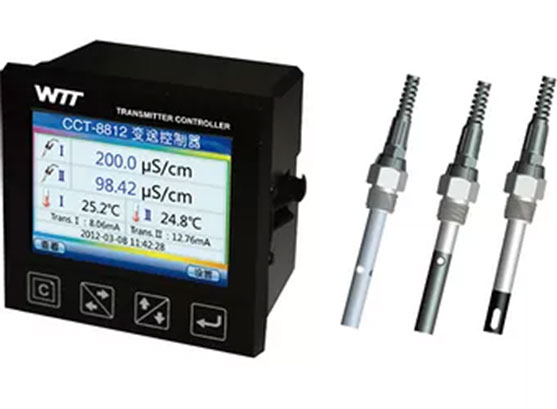

CCT-8300A

Conductivity/Resistivity/TDS & Temperature Transmitter Controller
(스마트형 전도도/비저항계)

Model	CCT-8301A \| CCT-8302A(단종)
Cell constant	0.01 ; 0.10 ; 1.00 ; 10.0cm
Range	Conductivity	0.05~100㎲/cm
	Resistivity	0.05~18.25mΩ.cm
	TDS	0.3ppm~50ppt
	Temp.	0~50℃(Temp. compensation component : PT1000Ω)
Resolution	Conductivity	0.01㎲/cm, 0.01㎲/cm
	Resistivity	0.01mΩ.cm
	TDS	0.01ppm
	Temp.	0.1℃
Accuracy	Conductivity	1.0%(F.S)
	Resistivity	1.5%(F.S)
	TDS	1.0%(F.S)
	Temp.	±0.5%
4~20mA	Channels	Double channel(independent), one channel fully Isolated
	Characteristics	Reversible, fully adjustable, instrument mode for select
	Channels configuration	Programmed for conductivity, resistivity, TDS & Temp.
	Loop resistance	500Ω(Max), DC24V
	Accuracy	±0.1mA
Control contacts	Channels	Triple channel, isolated from each other
	Contacts	Photoelectronic semiconductor relay
	Load capacity	50mA(Max); AC/DC30V
	Programmable	Programmable for conductivity, resistivity, TDS & Temp. and Time
Communication port	RS485 communications, Modbus standard protocol
Power supply	DC24V±4V
Protection level	IP65(with back cover)
Working enviroment	Temp. : 0~50℃; Relative humidity ±85% RH
Storage enviroment	Temp. : -20~60℃; Relative humidity ±85% RH
Dimension	96mm x 96mm x 94mm(H x W x D)
Hole size	91mm x 91mm (H x W)
installation	Panel mounting type quick fixed

CCT-8301A

CCT-8300(A)는 대형 모니터(컬러)를 갖춘 최고급형 제품으로 제약, 전자산업 등 초순수에 전반적으로 적용할 수 있는 전도도/비저항계 콘트롤러입니다. 최고급형 스마트 모델로 다양한 기능을 갖고 있는 제품으로 오폐수, 정수, 초순수 산업의 수질 측정 및 관리가 가능합니다.
